R Shiny with user authentication over HTTPS

 •  Filed under tutorials

I want to use R Shiny to create dashboards to look at health record data from OpenMRS. Don't worry, this tutorial is not specific to OpenMRS. I'll explain how to get R Shiny working with user authentication via ShinyProxy and KeyCloak, all dockerized, all over HTTPS.

This documentation also exists, perhaps more up to date, on GitHub.

Notate Bene

We're going to use ShinyProxy with "simple" (insecure) auth available only on the LAN, and set up an instance in the cloud with KeyCloak authentication, with a KeyCloak server we'll also set up in the cloud.

I'm just going to document the fully secured setup -- the insecure setup is a subset of the work.

So far, I've only gotten KeyCloak to work with dockerized MySQL. Getting it to work with a preexisting MySQL database (such as the one used by OpenMRS) is a TODO.

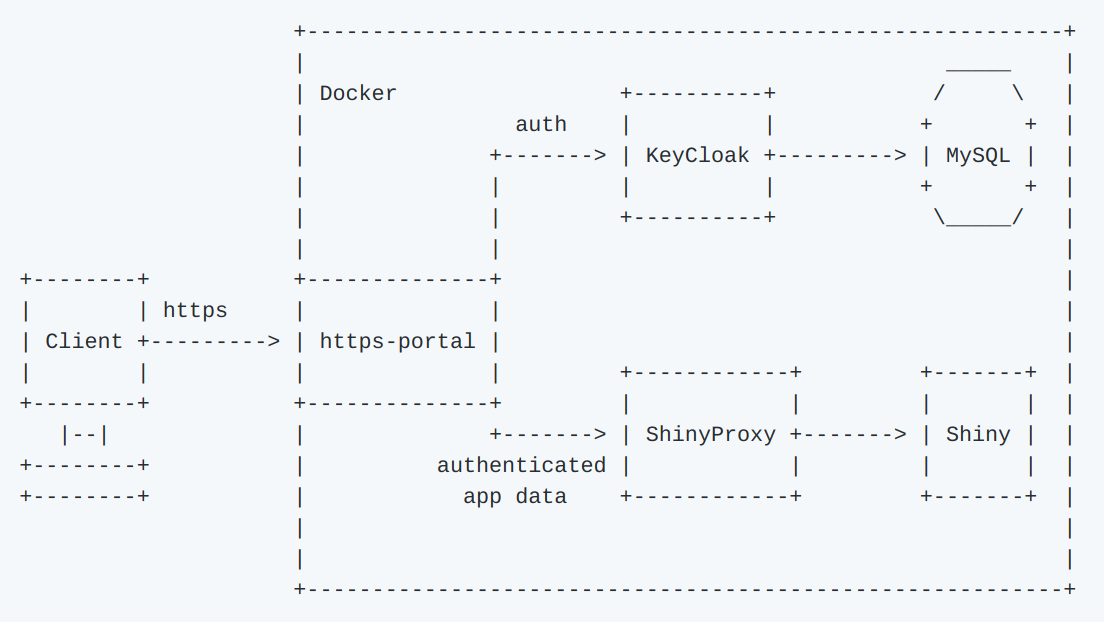

The Stack

  • Shiny is an R library for producing webapps
  • ShinyProxy is an authorization and orchestration layer. It checks whether a user is authenticated, and if not, sends them to KeyCloak for authentication. It then presents an interface for launching the Shiny apps that the user is authorized to use.
  • KeyCloak is a crazy powerful user/auth management application, which provides a management console for adding users, a login screen, and a million options.
  • MySQL will hold the user data, but could also be used for other things (e.g. by the Shiny apps).
  • https-portal will act as a reverse proxy, securing everything over HTTPS. It runs nginx under the hood and uses letsencrypt for TLS certificates.

Server Setup

Spin up a server. I'm working on Debain Stretch. I like that it doesn't have the AppArmor weirdness mentioned below.

Docker Setup

Install Docker

  • Configure daemon to be available at port 2375. Use the snippet from the ShinyProxy instructions, but use sudo systemctl edit docker.service to manage the override file.
  • (On Ubuntu 18.04, I had to disable AppArmor because otherwise Docker containers were unkillable. But this will make snaps fail to start. Good luck.)

Add your user to the docker group.

sudo usermod -aG docker $(whoami)

Install Docker Compose

Create the network that your docker stuff will operate on:

sudo docker network create sp-net

ShinyProxy Initial Setup

We're going to build a docker image for ShinyProxy exactly as described here, except that our network is called sp-net, and we're going to call our image shinyproxy rather than shinyproxy-example. Don't worry about the contents of application.yml just yet.

Get Everything Initially Running

You'll need two (sub)domains, one for ShinyProxy and one for KeyCloak. Mine were sp.domain.com and sp-keycloak.domain.com. Add A records from these (sub)domains to your server's IP address.

Take a look at the KeyCloak Docker documentation. Get mysql up and running (note that the database name, user name, and password all matter — see note about env vars below):

docker run --name mysql -d --net sp-net -e MYSQL_DATABASE='keycloak' -e MYSQL_USER='keycloak' -e MYSQL_PASSWORD='password' -e MYSQL_ROOT_PASSWORD="$MYSQL_ROOT_PASS" mysql:5.6

(This could probably be integrated into docker-compose as well.)

Create a docker-compose.yml like the following:

version: '3'

services:
  https-portal:
    image: steveltn/https-portal:1
    ports:
      - '80:80'
      - '443:443'
    networks:
      - sp-net
    restart: always
    environment:
      DOMAINS: 'sp-keycloak.domain.com -> http://dockerhost:8010, sp.domain.com -> http://dockerhost:8020'  # change 'domain.com' to your domain
      STAGE: local  # change this to 'production' once you're sure DNS is working
  keycloak:
    image: jboss/keycloak
    ports:
      - '8010:8080'
    networks:
      - sp-net
    environment:
      PROXY_ADDRESS_FORWARDING: 'true'
  shinyproxy:
    image: shinyproxy
    ports:
      - '8020:8080'
    networks:
      - sp-net
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock
networks:
  sp-net:
    external: true

And run it with docker-compose up -d

This will spin up HTTPS-PORTAL exposed at ports 80 and 443 (make sure your firewall is configured such that these ports are exposed; and that they are the only ports exposed), ShinyProxy on localhost:8020, and KeyCloak on localhost:8010. HTTPS-PORTAL will route to either ShinyProxy or KeyCloak depending on the URL at which it is accessed.

I wasn't able to get the KeyCloak environment variables for setting database address or database password to work. We need to do so if we want to use an un-dockerized or differently-named MySQL instance (or a different database entirely), or if we want another layer of security in between the system and the data.

KeyCloak Setup

Start by creating the initial admin user:

docker exec $CONTAINER_ID keycloak/bin/add-user-keycloak.sh -u admin -p admin123

KeyCloak wisely disallows admin console access from anywhere outside localhost. So, from your dev machine, open a tunnel:

ssh -L 4000:localhost:8010 $MY_SERVER

Navigate to localhost:4000 in your browser and sign in with the initial admin credentials from above.

There's a zillion options! Fortunately we only need a few of them.

  1. First, hover over "Master" in the upper-left corner and click "Add Realm." Name your realm. I used "shinyproxy".
  2. Create your first user!  Click "Users" in the left sidebar. Create a user. Only Username is required. Click on your newly created user. Click the "Credentials" tab. Set a temporary password. So you can log in as this user.
  3. Click "Clients" in the left sidebar.
  4. Click "Create." Name your client application. I used "shinyproxy" again.
  5. On the main Settings page:  Turn "Authorization Enabled" ON. (not sure if strictly necessary) Add https://sp.domain.com/* to "Valid Redirect URIs" (not sure if strictly necessary) Click "Save"
  6. Click the "Credentials" tab in the top tab bar. On this page:  Copy the Secret

Configure ShinyProxy to use KeyCloak

We're going to edit ShinyProxy's application.yml and rebuild the docker image. With the names I used to configure KeyCloak in the admin console earlier, my application.yml ended up looking like

proxy:
  port: 8080
  authentication: keycloak
  useForwardHeaders: true  # not sure if necessary or not
  admin-groups: admins
  keycloak:
    realm: shinyproxy
    auth-server-url: https://sp-keycloak.domain.com/auth
    resource: shinyproxy
    credentials-secret: ****Secret**** # the secret we copied earlier
  docker:
      internal-networking: true
  specs:
  - id: 01_hello
    display-name: Hello Application
    description: Application which demonstrates the basics of a Shiny app
    container-cmd: ["R", "-e", "shinyproxy::run_01_hello()"]
    container-image: openanalytics/shinyproxy-demo
    container-network: sp-net
  - id: 06_tabsets
    container-cmd: ["R", "-e", "shinyproxy::run_06_tabsets()"]
    container-image: openanalytics/shinyproxy-demo
    container-network: sp-net
logging:
  file:
    shinyproxy.log

Run docker build . -t shinyproxy and docker-compose up -d.

One last piece before we're done: execute docker pull openanalytics/shinyproxy-demo to pull the Shiny demo apps that ShinyProxy references in the application.yml above.

You should now be able to navigate to sp.domain.com, be redirected to sp-keycloak.domain.com, log in as the user you created, be redirected back to sp.domain.com, and launch a Shiny App.

Shiny Setup

Install R / RStudio

Create R Shiny application

Package it up, but use FROM rocker/r-base:latest rocker/r-base:latest`

Hopefully this all works for you!
